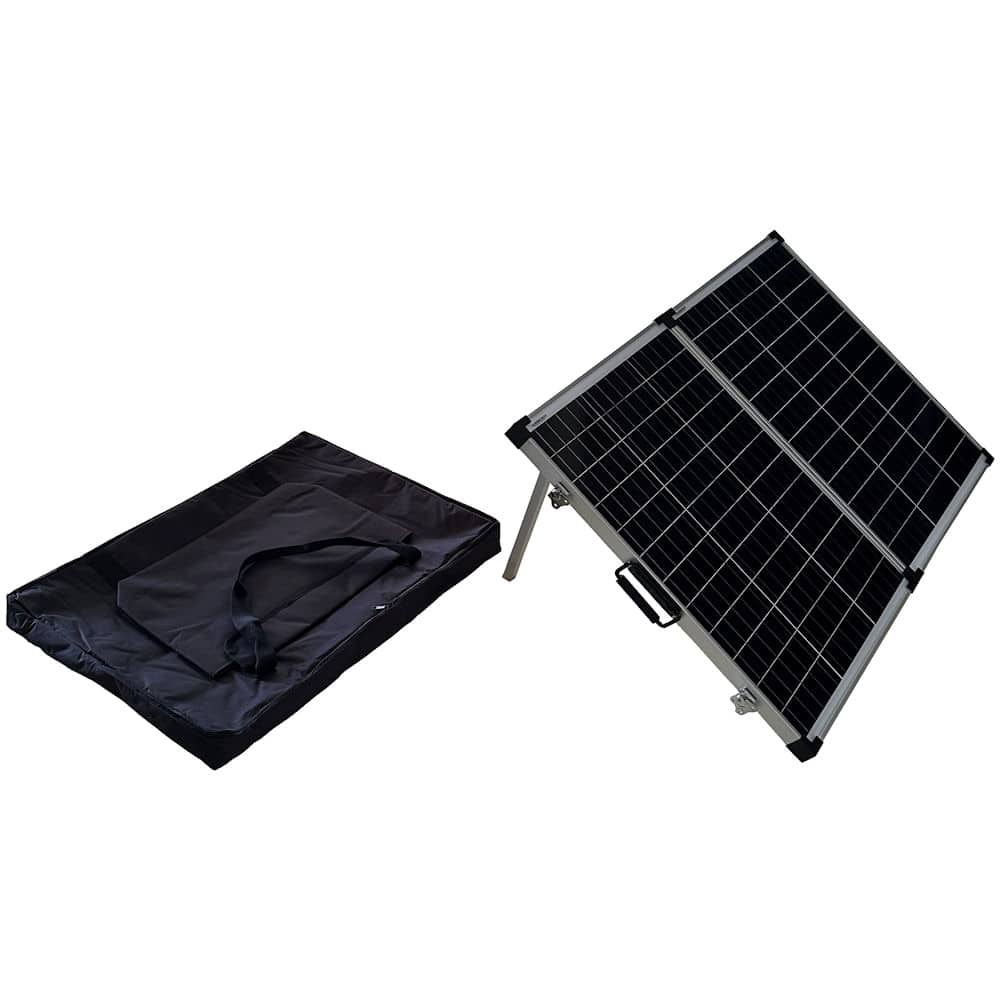

120 Watt Solar Panel Kit has lightweight, strong aluminium swing down legs.
Protective plastic corners are installed on each corner of the solar panels.
There are latches to keep the kit closed when in storage.
A protective bag is included to keep your kit in when not in use.

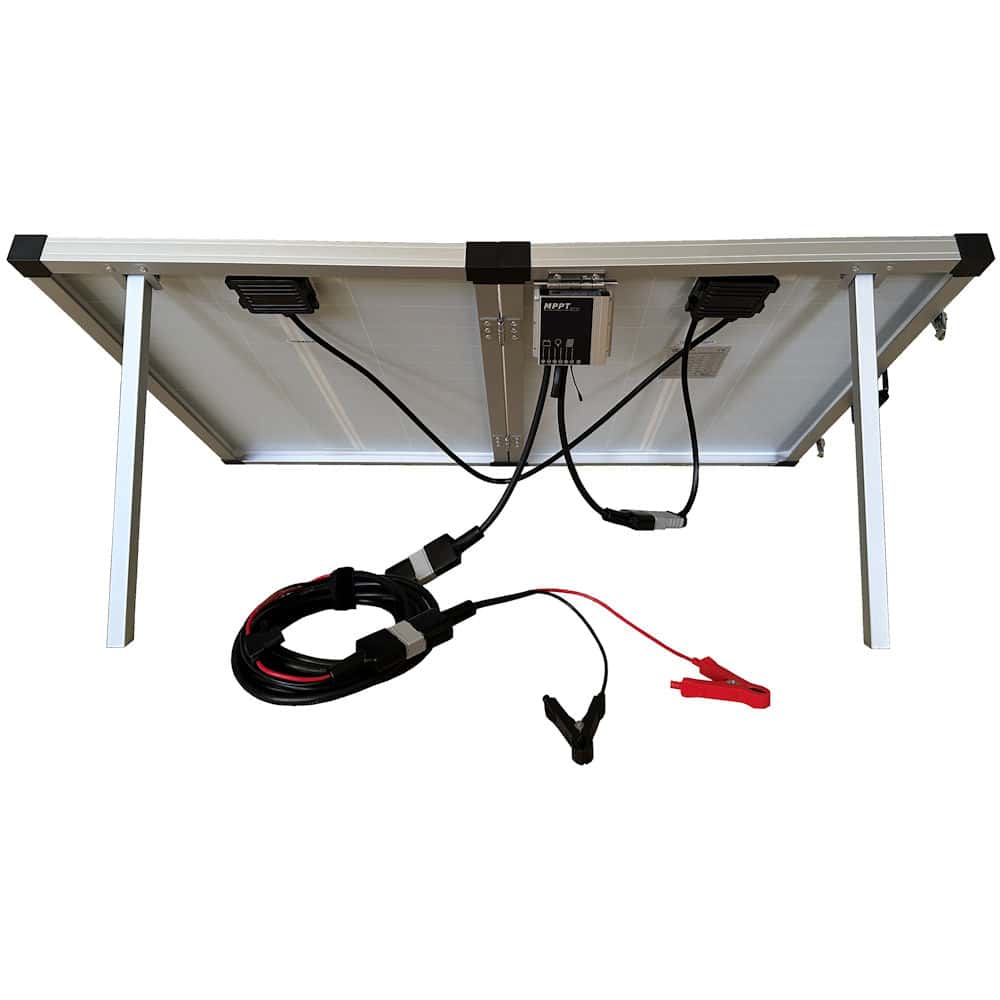

Included is a regulator that is installed on a bracket which swings down from the panel frame to make viewing the information on the regulator’s LCD screen much easier.
Connection to the battery can be done using the Anderson style plug or battery clips which are installed on the long lead.
The regulator is wired with Anderson style plugs so it can be bypassed to make the kit usable with other dc to dc chargers with an inbuilt solar regulator.
Maximum power (Pmax) | 120W |
Maximum power voltage (Vmp) | 18.15V |
Maximum power current (Imp) | 6.61A |
Open circuit voltage (Voc) | 21.45V |
Short circuit voltage (Isc) | 7.31A |
Maximum system voltage | 1000VDC |
Dimensions (Folded) | 650 x 510 x 65mm |
Weight | 9.7kg |
Solar Controller / Regulator (HP2410) | 12V/24V 10A |
